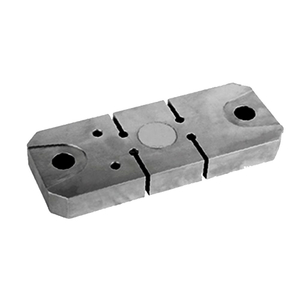

LP7145B Tension load cell

  • LP7145B

  • Locosc

Katayuan ng availability:
Dami:
Magtanong Idagdag sa Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

LP7145B S type load cell , using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. Ang isang mataas na katumpakan at mataas na pagiging maaasahan ng pag -load ng cell ay ginawa ng pinong proseso ng daloy at mataas na kagamitan sa pagsukat ng katumpakan.

Proseso ng Daloy ： Patch (Pre-Cured, Post-Cured) → Bridge  Wire → Compensation ng Temperatura → I Nitial  Test → Seal ING → Strain-Hole Laser Welding → I Nitial  Test → Standardized Compensation → Retest → Seal （ Cleaning Glue ） →  P Acking  at Storage



3





LP 7145B

Na -rate na Kapasidad: 200/250/300kg

Katumpakan ng Klase: D1

Na -rate na output: 1.2 ± 0.1mv/v

Kabuuang error: ± 0.02%fs

Creep (30min): ± 0.02%fs

Paglaban sa Input: 1000 ± 10Ω

Output Resistance: 1000 ± 2Ω

Temperatura ng pagpapatakbo: -10 ~+40 ℃

Ligtas na labis na karga: 150%fs

Mapanirang pag -load: 200%fs

Inirerekumenda ng paggulo: 4 ~ 12vdc  max: 15vdc

Haba ng cable: 4 na mga wire na may screen

Exc+(pula) exc- (itim) sig+(berde) sig- (puti)

Konstruksyon: Alloy Steel, IP67

Application para sa: scale ng platform  , inspeksyon ng sasakyan


 Mga Dimensyon ng Balangkas (mm):


Tim 截图 20 18100918403 4

Scale ng platform  , inspeksyon ng sasakyan
